Dual-diameter patriot tube cleaning brushes (pack of 10)

Dual-diameter patriot brushes

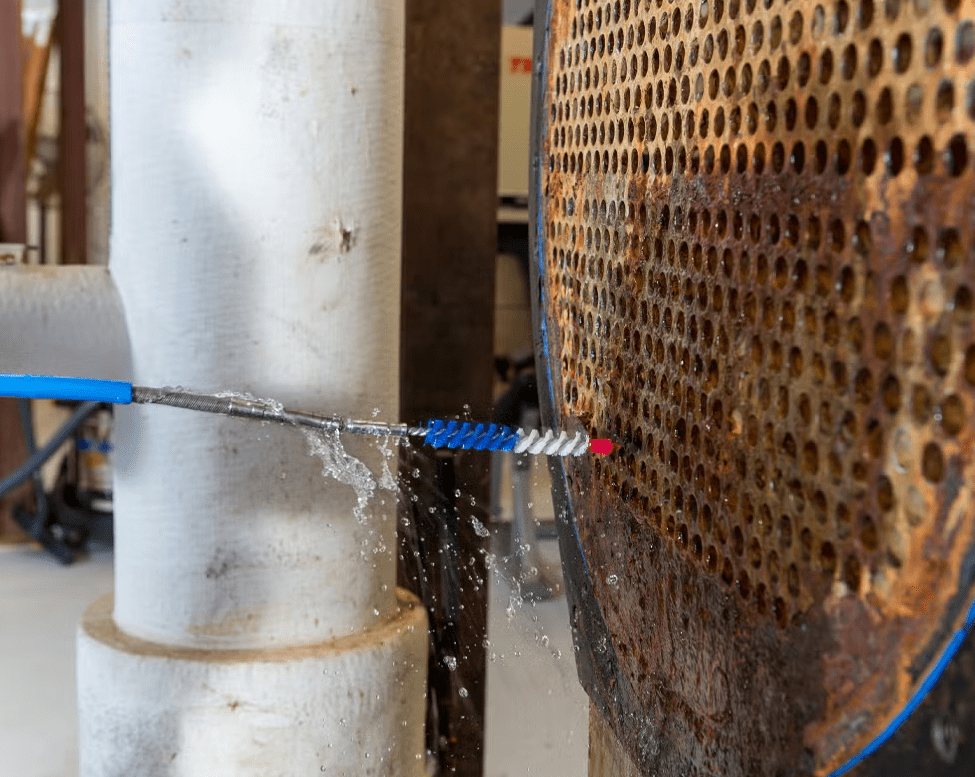

Goodway® dual-diameter patriot brushes (ENN) are designed to remove light to mediumhard deposits from straight, internally enhanced heat exchanger tubes.

• Use these brushes to remove deposits, like: sand, silt, mud, slime (biofouling) and very light scaling.

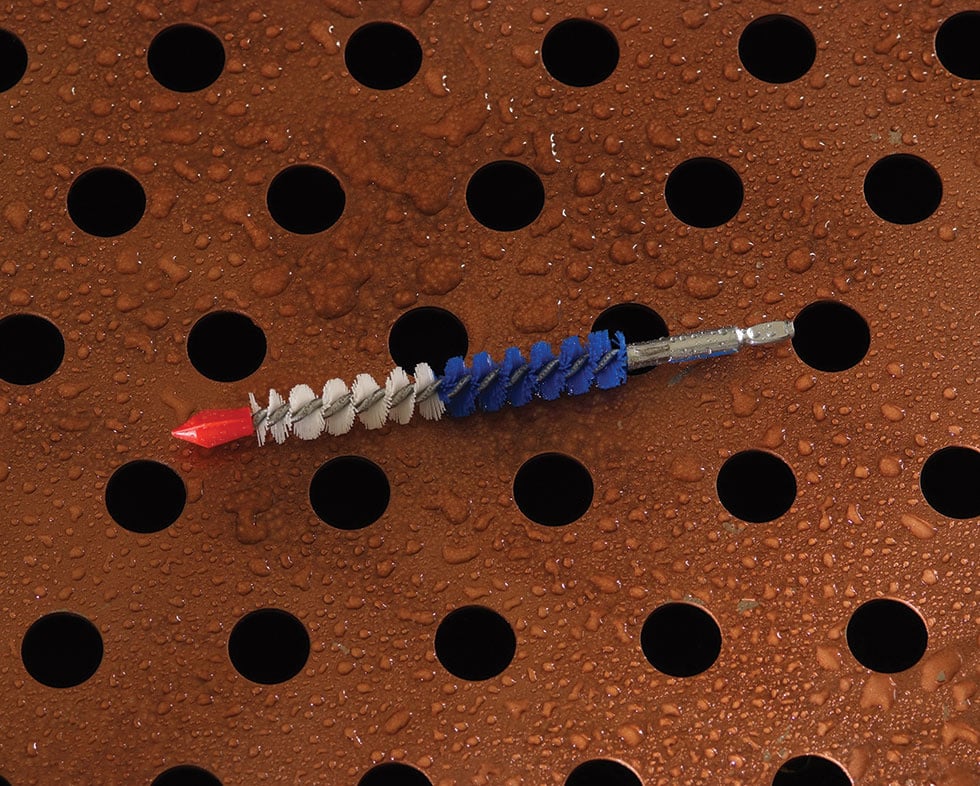

Dual diameter design

Cleaning internally enhanced heat exchanger tubes can be challenging, as not all brushes are capable of removing deposits from within the tube grooves. The dual-diameter patriot brushes are specifically designed with dual bristle lengths, allowing them to clean both the tube surface and the grooves effectively. As a result, ENN’s deliver significantly better cleaning performance than conventional brushes for this type of tube.

Maritime industry

These brushes are specifically designed for use in the maritime industry – for example, for cleaning water-cooled chiller tubes on board (cruise) ships – and are available only in the two most commonly used tube inner diameters: 5/8″ and 15/16″.

Threaded vs. Quick Connect

Goodway® dual-diameter patriot brushes are available with either threaded or quick connect fittings. The right choice depends on your application:

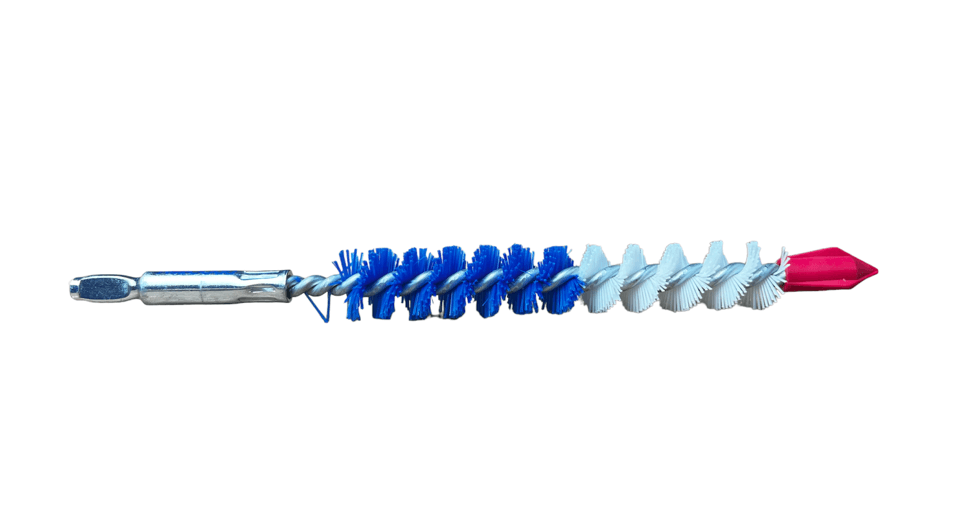

• Quick Connect – Recommended for most chiller and heat exchanger cleaning applications. Enables bi-directional brush rotation for superior cleaning results. Best paired with machines such as: RAM-PRO, RAM-PRO-XL, and RAM-4.

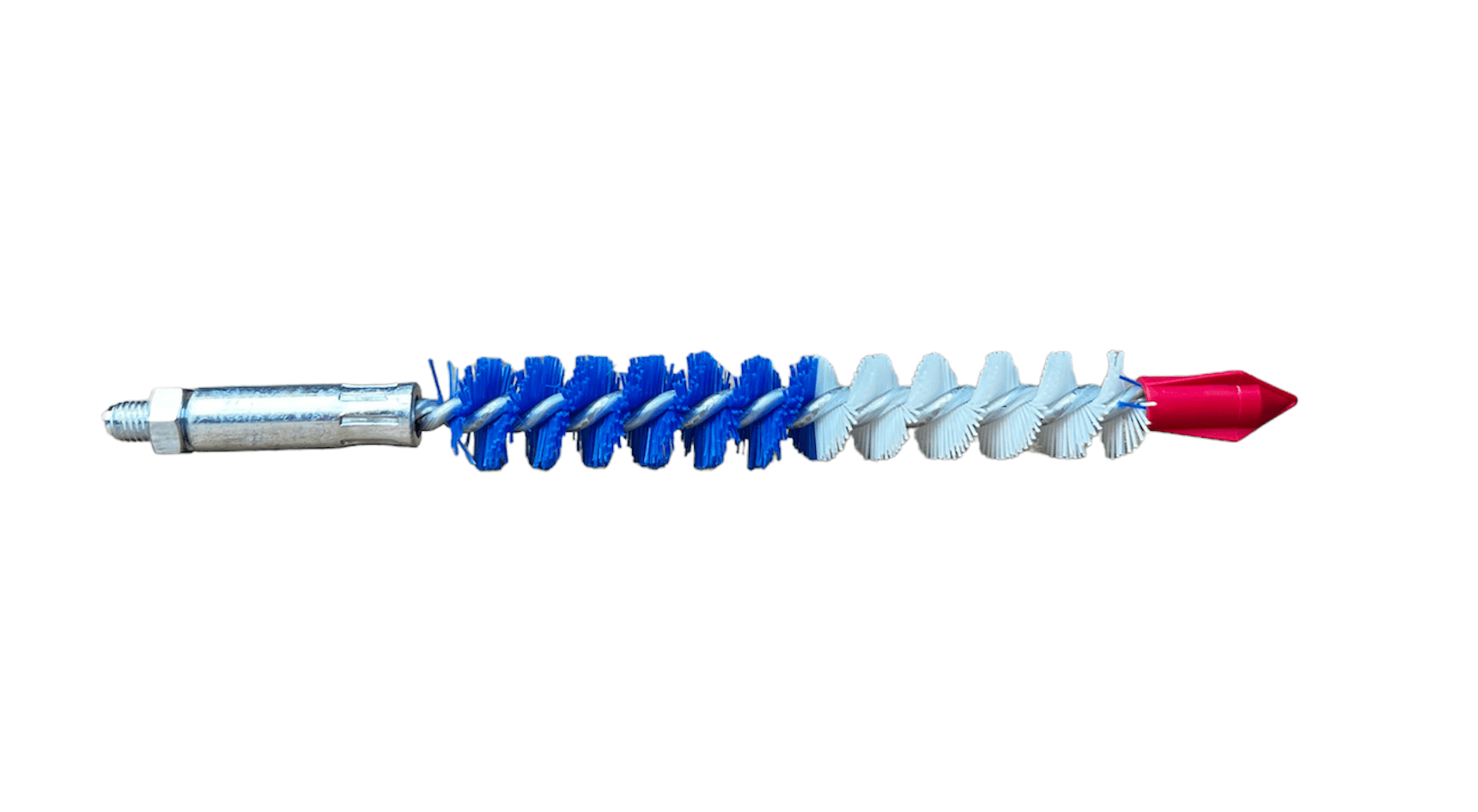

• Threaded – Recommended for heavy-duty, industrial cleaning applications. Best paired with machines such as: AWT-100, AWT-100X, and RAM-4X.

Most brushes are supplied with quick connect brush fittings, as Goodway® machines often feature dual footswitches for forward and reverse operation.
