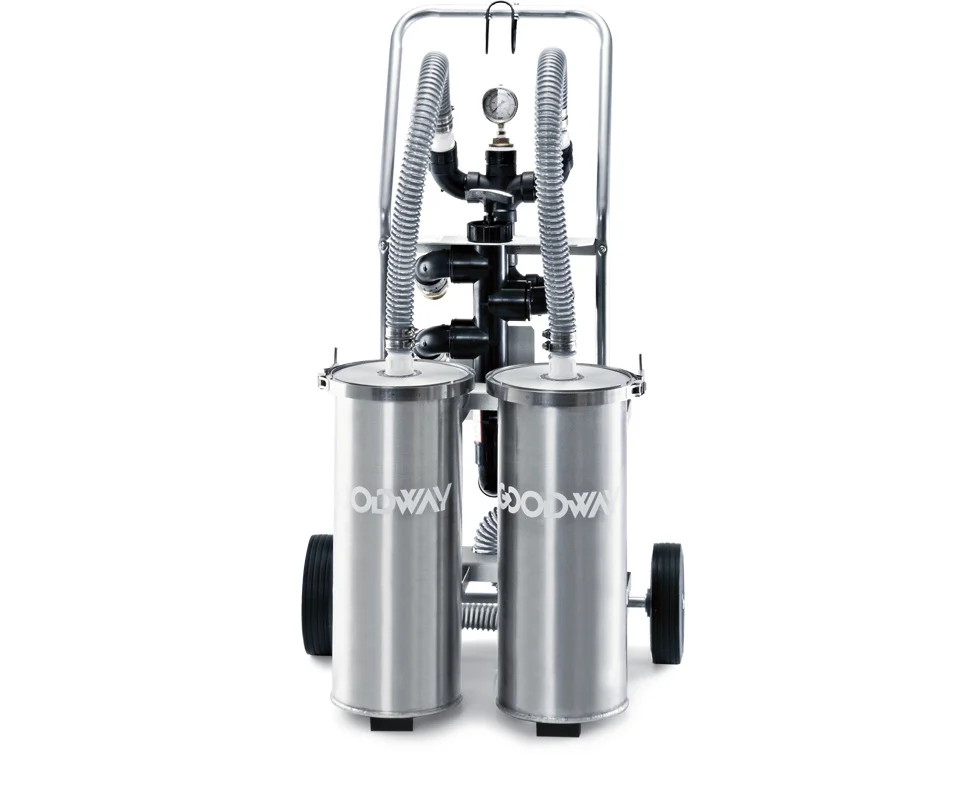

CTV-F2 filtration system
Article number: CTV-F2
0 reviews
Commonly used to clean the following applications:
€ 4.995,00 Excl. tax
The Goodway® CTV-F2 filtration system filters cooling tower water vacuumed by the CTV-1501, allowing it to be reused and reducing water loss to a minimum.
CTV-F2 filtration system
The Goodway® CTV-F2 filter system works together with the CTV-1501 cooling tower vacuum to filter the vacuumed cooling tower water, allowing it to be pumped back into the basin. This process effectively reduces water loss to near zero, enabling efficient and environmentally friendly cooling tower cleaning and maintenance.
Practical information
Simply connect the CTV-1501 drain hose to the CTV-F2, and all vacuumed water is immediately filtered for reuse.
- Twin filter cartridges remove particles down to 5 microns for optimal water quality.
- Large filter area (3,7 m²) ensures efficient cleaning of even the smallest particles.
- Filters are easy to clean and reuse, up to three times, using a reverse flushing method.
- Quick-lock lids allow for rapid filter changes.
- Delivers advanced filtration while returning clean, reusable water to the cooling tower, resulting in almost 0% water loss during maintenance.
Watch product video CTV-F2 filtration system
Specifications CTV-F2 filtration system
| Water discharge rate | 189 liters per minute at maximum 2 BAR |
|---|---|
| Filter specifications | Two reusable synthetic, 5 micron filters |
| Filter reusability | Up to three times by means of backflushing |
| Dimensions | 50 x 50 x 95 centimeters |
| Weight | 32 kilograms |
| Supplied with | Two 5-micron filters, 7,6 meter connection hose, 7,6 meter discharge hose, and mobile dolly |
| Required system to operate the device | Goodway® CTV-1501 cooling tower vacuum |
